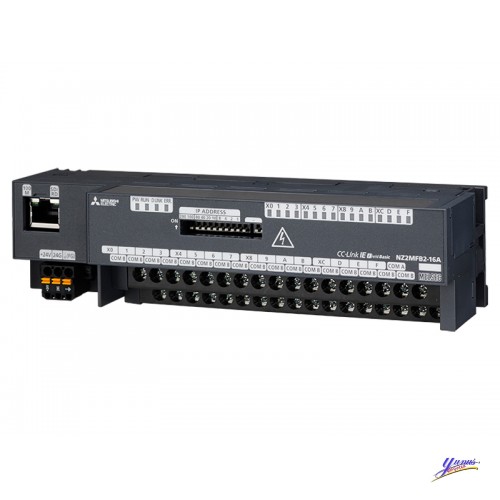

Mitsubishi NZ2MFB2-16A PLC CC-Link IE Field Basic, 16 AC Input, AC100～120V, Screw,NZ2MFB2-16A, Mitsubishi
Mitsubishi NZ2MFB2-16A PLC CC-Link IE Field Basic, 16 AC Input, AC100～120V, Screw
DIGITAL INPUT MODULE
| Rated Input Voltage (VAC) | 100-120 |
| Current Type | DC |
| Type | CC-LINK IE FIELD NETWORK |
| Int. Current Consumption (A) | 0,064 |
| Wiring | SCREW |
| Integrated Digital Inputs | 16 |
| Occupied Stations | 1 |
| Power Supply (V) | 24 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 200 |
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,31 |
ORDER CODES
| European Order Code | 313125 |
| Global Order Code | 1WG006 |
CLASSIFICATION DATA
| Product hierarchy | IAD50305 |
| Class Description | FA-MOD PLC: Digital Input Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.447 KG |
| Volume | 2.28 CDM |
| Length | 28,5 CM |
| Width | 8 CM |
| Height | 10 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi NZ2MFB2-16A PLC CC-Link IE Field Basic, 16 AC Input, AC100～120V, Screw,NZ2MFB2-16A
- Brand: Mitsubishi
- Product Code: NZ2MFB2-16A
- Availability: 1000
Tags: NZ2MFB2-16A
