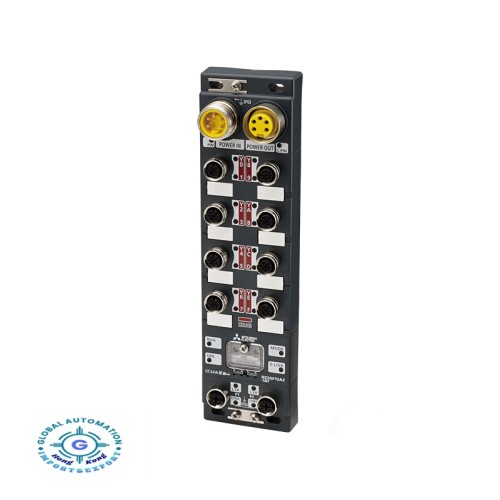

Mitsubishi NZ2GF12A2-16T PLC CC-Link IE Field I/O module,NZ2GF12A2-16, Mitsubishi
Mitsubishi NZ2GF12A2-16T PLC CC-Link IE Field I/O module;16ch output/sink; IP67
DIGITAL OUTPUT MODULE
| Type | CC-LINK IE FIELD NETWORK |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 12/24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,24 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 60 |
| Height (mm) | 235 |
| Depth (mm) | 38,5 |
| Weight (kg) | 0,71 |
ORDER CODES
| European Order Code | 307420 |
| Global Order Code | 1WF039 |
CLASSIFICATION DATA
| Product hierarchy | IAD50305 |
| Class Description | FA-MOD PLC: Digital Output Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.728 KG |
| Volume | 1.12 CDM |
| Length | 28 CM |
| Width | 8 CM |
| Height | 5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
ENVIRONMENTAL
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi NZ2GF12A2-16T PLC CC-Link IE Field I/O module,NZ2GF12A2-16
- Brand: Mitsubishi
- Product Code: NZ2GF12A2-16T
- Availability: 1000
Tags: NZ2GF12A2-16T
