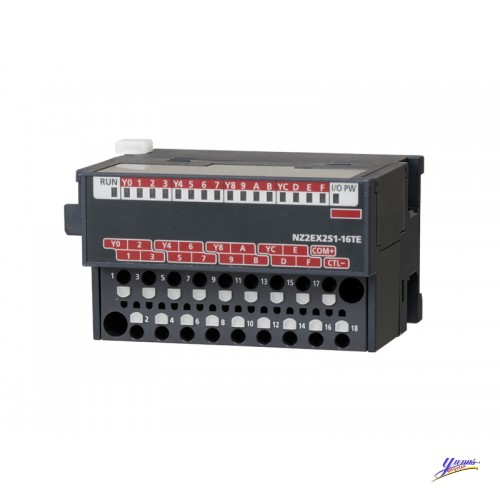

Mitsubishi NZ2EX2S1-16TE PLC CC-Link IE Field Extension Module,NZ2EX2S1-16T, Mitsubishi
Mitsubishi NZ2EX2S1-16TE PLC CC-Link IE Field Extension Module;16 transistor outputs;source;spring clamp
DIGITAL OUTPUT MODULE
| Type | CC-LINK IE FIELD NETWORK |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 12-24 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,03 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 93 |
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,19 |
ORDER CODES
| European Order Code | 297157 |
| Global Order Code | 1WF022 |
CLASSIFICATION DATA
| Product hierarchy | IAD50305 |
| Class Description | FA-MOD PLC: Digital Output Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | B |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.264 KG |
| Volume | 1.131 CDM |
| Length | 19 CM |
| Width | 7 CM |
| Height | 8,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi NZ2EX2S1-16TE PLC CC-Link IE Field Extension Module,NZ2EX2S1-16T
- Brand: Mitsubishi
- Product Code: NZ2EX2S1-16TE
- Availability: 1000
Tags: NZ2EX2S1-16TE
