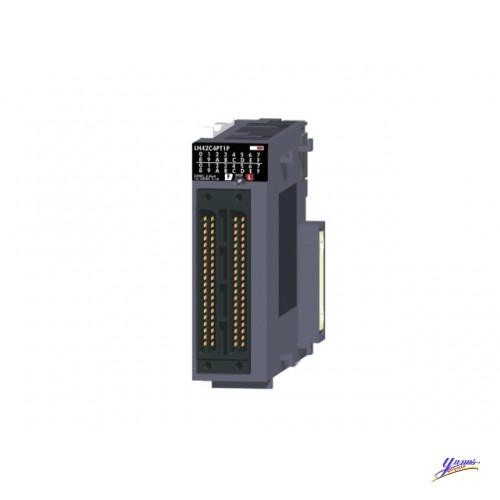

Mitsubishi LH42C4PT1P SPS,L-Series I/O Module,LH42C4PT1P, Mitsubishi
Mitsubishi LH42C4PT1P SPS,L-Series I/O Module;32 In/32 Outputs;Transist.;24VDC In/12-24VDC Out;Source
TECHNICAL INFORMATION
DIGITAL OUTPUT MODULE
| Type | L SERIES |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 32 |
| Integrated Digital Outputs | 32 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 12-24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,15 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 28,5 |
| Height (mm) | 90 |
| Depth (mm) | 95 |
| Weight (kg) | 0,12 |
ADDITIONAL INFORMATION
ORDER CODES
| European Order Code | 269672 |
| Global Order Code | 1WC207 |
CLASSIFICATION DATA
| Product hierarchy | IAD510 |
| Class Description | FA-MOD PLC: Digital Output Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | B |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.185 KG |
| Volume | 1.17 CDM |
| Length | 15 CM |
| Width | 13 CM |
| Height | 6 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi LH42C4PT1P SPS,L-Series I/O Module,LH42C4PT1P
- Brand: Mitsubishi
- Product Code: LH42C4PT1P
- Availability: 1000
Tags: LH42C4PT1P
