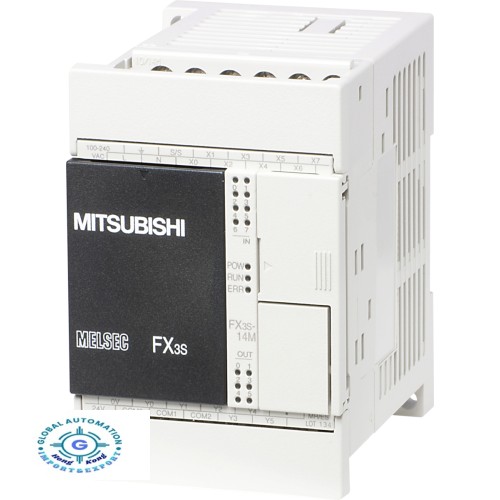

Mitsubishi FX3S-14MT/ES FX3S Base Unit,FX3S-14MT/ES, Mitsubishi
Mitsubishi FX3S-14MT/ES FX3S Base Unit AC100-240V;8 Inputs DC24V;6 Transistor Outputs (sink)
MAIN UNIT
| Type | FX3S |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 16K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 6 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Local I/O Points | 14 |
| Local + Remote I/O Points | 14 |
| Expandable | NO |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| USB | 1 |
| RS-422 | 1 |
| Power Consumption (W) | 18 |
| Buffer Battery | NO |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 60 |
| Height (mm) | 90 |
| Depth (mm) | 75 |
| Weight (kg) | 0,3 |
ORDER CODES
| European Order Code | 267114 |
| Global Order Code | 09H031 |
CLASSIFICATION DATA
| Product hierarchy | IAD215 |
| Class Description | FA-COM PLC: Main Unit |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.35 KG |
| Volume | 1.691 CDM |
| Length | 14 CM |
| Width | 11,5 CM |
| Height | 10,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85371091 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FX3S-14MT/ES FX3S Base Unit,FX3S-14MT/ES
- Brand: Mitsubishi
- Product Code: FX3S-14MT/ES
- Availability: 1000
Tags: FX3S-14MT/ES
