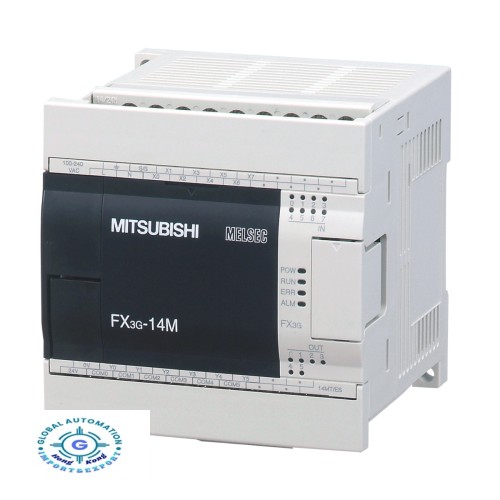

Mitsubishi FX3G-14MR/DS PLC, FX3G Base Unit,FX3G-14MR/DS, Mitsubishi
Mitsubishi FX3G-14MR/DS PLC, FX3G Base Unit DC 24 V; 8 inputs DC 24V; 6 relay outputs
MAIN UNIT
| Type | FX3G |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 32K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 6 |
| Output Type | RELAY |
| Local I/O Points | 128 |
| Local + Remote I/O Points | 256 |
| Expandable | YES |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| USB | 1 |
| RS-422 | 1 |
| Power Consumption (W) | 19 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 90 |
| Height (mm) | 90 |
| Depth (mm) | 86 |
| Weight (kg) | 0,5 |
ORDER CODES
| European Order Code | 231474 |
| Global Order Code | 09T286 |
CLASSIFICATION DATA
| Product hierarchy | IAD214 |
| Class Description | FA-COM PLC: Main Unit |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | A |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.522 KG |
| Volume | 1.722 CDM |
| Length | 11,2 CM |
| Width | 12,3 CM |
| Height | 12,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85371091 |
| Country of Origin | JP |
LIFE CYCLE
| Predecessor | 141258 |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FX3G-14MR/DS PLC, FX3G Base Unit,FX3G-14MR/DS
- Brand: Mitsubishi
- Product Code: FX3G-14MR/DS
- Availability: 1000
Tags: FX3G-14MR/DS
