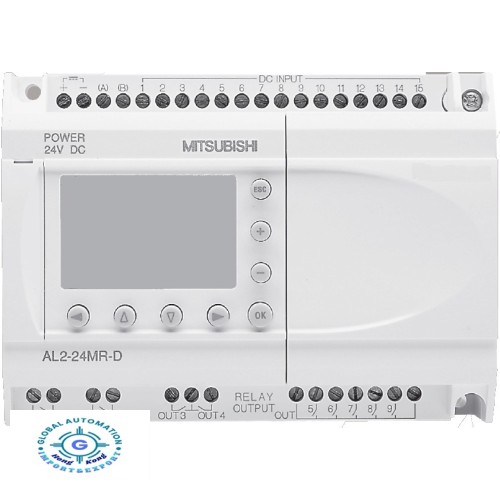

Mitsubishi AL2-24MR-D Programmable Logic Controller,AL2-24MR-D, Mitsubishi
Mitsubishi AL2-24MR-D Programmable Logic Controller, ALPHA Base Unit 15 inputs/9 relay outputs, DC
| Type | ALPHA 2 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 200 BLOCKS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 15 |
| Integrated Digital Outputs | 9 |
| Integrated Analogue Inputs | 8 |
| Output Type | RELAY |
| Local I/O Points | 24 |
| Local + Remote I/O Points | 24 |
| Expandable | YES |
| RS-232 | 1 |
| Power Consumption (W) | 9 |
| Buffer Battery | NO |
| Protection Class | IP20 |
| Min. Ambient Temperature (°C) | -25 |
| Max. Ambient Temperature (°C) | 55 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 124,6 |
| Height (mm) | 90 |
| Depth (mm) | 52 |
| Weight (kg) | 0,3 |
ORDER CODES
| European Order Code | 215075 |
| Global Order Code | 09N044 |
CLASSIFICATION DATA
| Product hierarchy | IAD207 |
| Class Description | FA-COM PLC: Main Unit |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | A |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.39 KG |
| Volume | 1.155 CDM |
| Length | 14 CM |
| Width | 11 CM |
| Height | 7,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85371091 |
| Country of Origin | JP |
LIFE CYCLE
| Predecessor | 164870 |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi AL2-24MR-D Programmable Logic Controller,AL2-24MR-D
- Brand: Mitsubishi
- Product Code: AL2-24MR-D
- Availability: 1000
Tags: AL2-24MR-D
