Delta NC-EIO-T3232,NC-EIO-T3232, Delta

Boards and cables for CNC systems

• TERMINAL BLOCKS:

NC-TBM-P5656 Terminal block for additional panel
Supports 56 inputs / 56 outputs
163.25 x 120.8 x 53.9 mm

NC-EXM-S01 Terminal block for 4-axis sensors and spindle
146.25 x 86.78 x 51.05 mm

NC-EXM-M01 Terminal block / adapter for manual pulse generator (MPG)
62.50 x 86.78 x 51.05 mm

• LOCAL INPUTS / OUTPUTS:

NC-TBM-T1616

Supports: 16 inputs / 16 outputs Output
type:
146.25 x 86.71 x 52.81 mm transistor

NC-TBM-R1616

Supports: 16 inputs / 16 outputs Output
type: relay
286 x 121.78 x 54.73 mm

• HIGH SPEED SERIAL INPUTS / OUTPUTS:

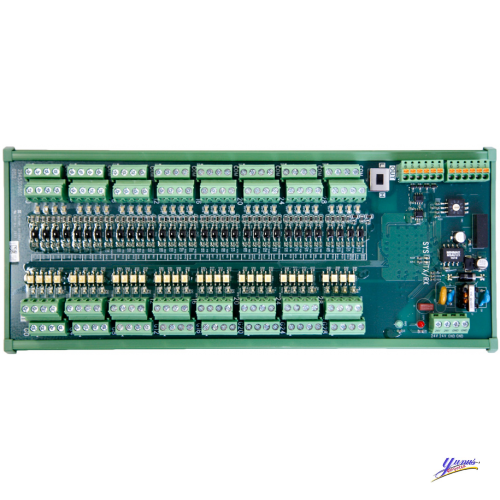

NC-EIO-T3232

Supports: 32 inputs / 32 outputs Output
type: optocoupler
286 x 121.78 x 51.01 mm

NC-EIO-R3216

Supports: 32 inputs / 16 outputs Output
type: relay
286 x 121.78 x 54.73 mm

NC-EIO-R2010

Supports: 20 inputs / 10 outputs Output
type: relay
217 x 121.79 x 60.56 mm

NC-EIO-ADC04

Supports: 4 analog inputs. Input
type:
146.25 x 86.78 x 51.05 mm

NC-EIO-DAC04

Supports: 4 analog outputs Output
type:
146.25 x 86.78 x 51.05 mm

NC-EIO-PMC02

Supports: 2 pulse outputs Output
type:
xx mm

NC-EIO-PMC06

Supports: 6 pulse outputs Output
type:
xx mm
