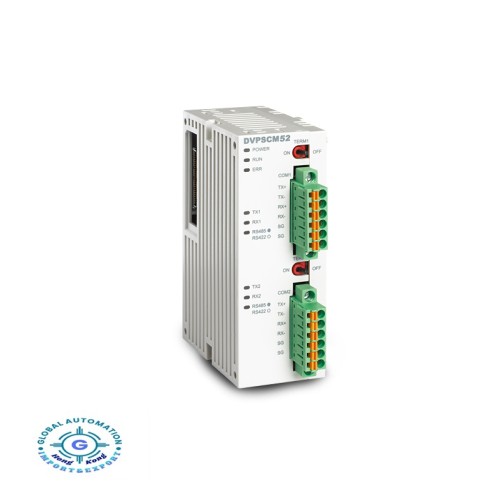

Delta DVPSCM52-SL PLC,DVPSCM52-SL, Delta

Delta DVPSCM52-SL Module additional COM ports, support for Modbus BACnet (slave), UD Link protocol

Supports BACnet MS/TP slave protocol

Easy to be connected and controlled via software of other brands

Functions as BACnet MS/TP remote I/O or gateway

Supports MODBUS with user-defined protocol

High noise immunity

High speed module on the left (PLC needed)

Features & Benefits

Supports BACnet MS/TP slave protocol

Easy to be connected and controlled via software of other brands

Functions as BACnet MS/TP remote I/O or gateway

Supports MODBUS with user-defined protocol

High noise immunity

High speed module on the left (PLC needed)

Specifications

Transmission method: RS-485/RS-422

Type : Feed-through terminals, with spring plugs

Terminal resistance : built in 120 ohm with a switch

Baudrates : 1,200、2,400、4,800、9,600、19,200、38,400、57,600、76,800,、115,200、230,400、460,800 bps

Communication protocol : BACnet MS/TP Slave、MODBUS ASCII/RTU、UD Link
