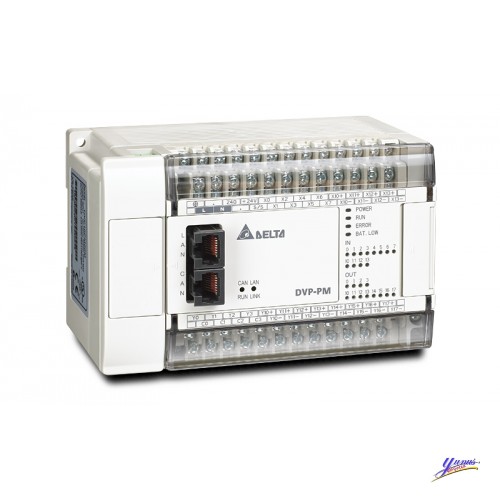

Delta DVP-10PM00M Universal Controller,DVP-10PM00M, Delta

Delta DVP-10PM00M Universal Controller (differential outputs up to 1 MHz, for 4-axis control)

Delta Professional Motion Control MPU Series & DVP-10 PM Series

We provide all Delta AC Drives, VFD’s,  Delta AC Servo Motors, Delta Rotary Optical Encoders, Delta Motion Control Network, Delta Programmable Logic Controller, Delta Human Machine Interfaces, Delta Text Panels, Delta Temperature Controllers, Delta Industrial Fieldbus Solutions, Delta Pressure Sensor, Delta Brushless DC Motors as well as Delta Brushless DC Drives.

SPECIFICATIONS

DVP-10PM Series

MPU points: 24
Max. I/O points: 256
Program capacity: 64k steps
Built-in hardware digital filter for counting
6 high-speed counters (O.C. 200kHz*4, differential 200kHz*2), supporting U/D, U/D Dir, A/B, 4A/B counting modes
4 differential 1MHz outputs, supporting U/D, U/D Dir, A/B output modes
Supports 1-speed (immediate stop after the mark arrives), 2-speed, zero return, MPG and single axis function
Highly accurate PWM 200kHz output, resolution 0.3%
Electronic gear function
8 high-speed captures (mark correction, frequency measurement), comparative output, mark/mask function (for bag making)
8 external interruptions for setting up rising – and falling-edge triggers, 1 timed interruption
Highly efficient command execution. LD: 0.1375µs, MOV: 2.1µs

APPLICATIONS

Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.
