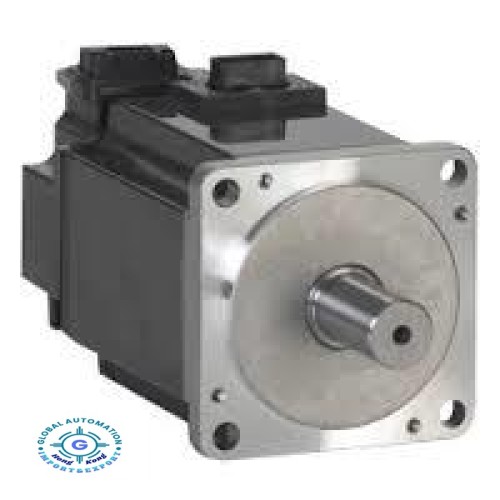

Mitsubishi HF-KE23BKW1-S100 Servo Motor

  SERVO MOTOR
Type HF-KE
Rated Torque (Nm) 0,64
Maximum Torque (Nm) 1,9
Rated Speed (rpm) 3000
Maximum Speed (rpm) 4500
Inertia (kg*cm2) 0,31
Brake YES
Protection Class IP55
Power Supply (V) 200
Current Type AC
Encoder Resolution (p/rev) 131072
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 60
Height (mm) 60
Depth (mm) 116,1
Weight (kg) 1,6
ORDER CODES
European Order Code 213088
Global Order Code 0HW991-00000V
CLASSIFICATION DATA
Product hierarchy IAK30216
Class Description FA-Servo-Motion: Servo Motor
External Material Group Discontinued Material
AVAILABILITY
Logistic Class C
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 1.483  KG
Volume 2.376  CDM
Length 24 CM
Width 11 CM
Height 9 CM
COMMODITY / IMPORT CODE
Commodity Code 85015100
Country of Origin JP
LIFE CYCLE
Predecessor 70412
Discontinued (EOL) 01.04.2013
Last Time Buy (LTB) 31.03.2013
End of Service (EOS) 31.12.2019
Successor 253949  HF-KN23BK
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO
