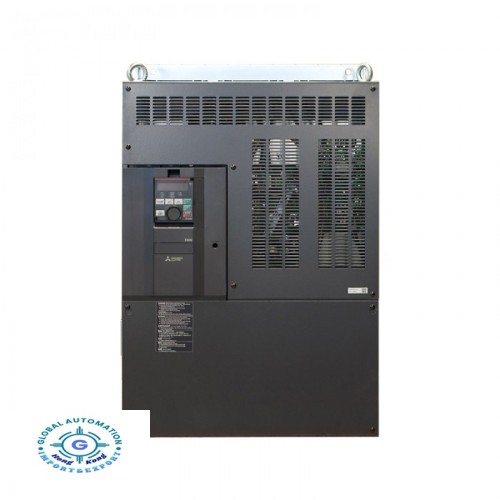

Mitsubishi FR-F820-02330-1-60 Inverter,FR-F820-0233, Mitsubishi
Mitsubishi FR-F820-02330-1-60 Inverter; Rated Power: 55kW; 3x200-240V;In max: 233A;(55kW; 233A);IP00
INVERTER
| Type | FR-F800 PUMP AND FAN |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 233 |
| Rated Output Current LD (A) | 212 |
| Rated Motor Capacity SLD (kW) | 55 |
| Rated Motor Capacity LD (kW) | 55 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| Type of Terminal Block | PLUG |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Built-In Network | MODBUS-RTU;BACNET |
| Protection Class | IP00 |
| Leakage Current (mA) | 22 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 435 |
| Height (mm) | 550 |
| Depth (mm) | 250 |
| Weight (kg) | 42 |
ORDER CODES
| European Order Code | 282824 |
| Global Order Code | 1ABC14 |
CLASSIFICATION DATA
| Product hierarchy | IAK24204 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 46.5 KG |
| Volume | 133.38 CDM |
| Length | 57 CM |
| Width | 60 CM |
| Height | 39 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85371091 |
| Country of Origin | JP |
LIFE CYCLE
| Discontinued (EOL) | 06.02.2018 |
| Last Time Buy (LTB) | 30.06.2018 |
| End of Service (EOS) | 05.02.2025 |
| Successor | 333259 FR-F820-02330-E3-60 |
ENVIRONMENTAL
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FR-F820-02330-1-60 Inverter,FR-F820-0233
- Brand: Mitsubishi
- Product Code: FR-F820-02330-1-60
- Availability: 1000
