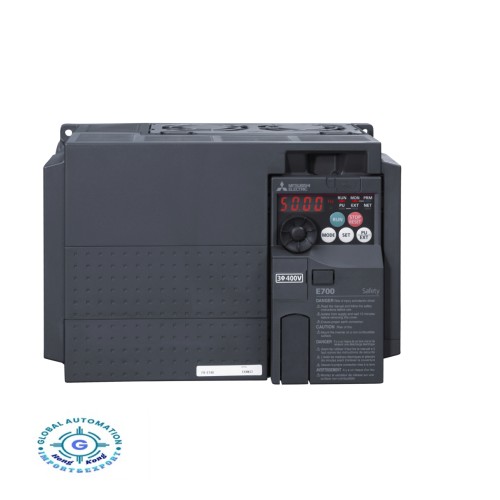

Mitsubishi FR-E740-060-EC Inverter,FR-E740-060-, Mitsubishi
Mitsubishi FR-E740-060-EC Inverter; Rated Power: 2,2kW; 3x380-480V; Rated Current: 6A@50°C; IP20
INVERTER
| Type | FR-E700 STANDARD INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 325 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 6 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 3 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 6 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| Type of Terminal Block | PLUG |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Protection Class | IP20 |
| Power Loss (W) | 100 |
| Standby Power Consumption (W) | 9,8 |
| Leakage Current (mA) | 1 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 140 |
| Height (mm) | 150 |
| Depth (mm) | 141,5 |
| Weight (kg) | 1,9 |
ORDER CODES
| European Order Code | 211958 |
| Global Order Code | 1ARB04E00 |
CLASSIFICATION DATA
| Product hierarchy | IAK234 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 2.204 KG |
| Volume | 9.148 CDM |
| Length | 23 CM |
| Width | 21,5 CM |
| Height | 18,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85044090 |
| Country of Origin | CN |
LIFE CYCLE
| Successor | 234804 FR-E740-060SC-EC |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FR-E740-060-EC Inverter,FR-E740-060-
- Brand: Mitsubishi
- Product Code: FR-E740-060-EC
- Availability: 1000
