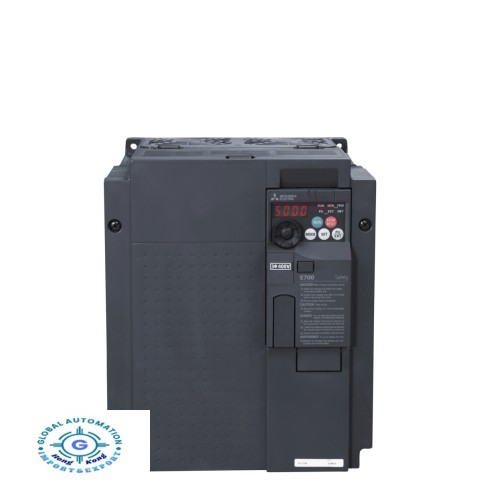

Mitsubishi FR-E740-040-EC Inverter,FR-E740-040-, Mitsubishi
Mitsubishi FR-E740-040-EC Inverter; Rated Power: 1,5kW; 3x380-480V; Rated Current: 4A@50°C; IP20
INVERTER
| Type | FR-E700 STANDARD INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 325 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 4 |
| Rated Motor Capacity ND (kW) | 1,5 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 3 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 6 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| Type of Terminal Block | PLUG |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Protection Class | IP20 |
| Power Loss (W) | 90 |
| Standby Power Consumption (W) | 9,8 |
| Leakage Current (mA) | 1 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 140 |
| Height (mm) | 150 |
| Depth (mm) | 141 |
| Weight (kg) | 2 |
ORDER CODES
| European Order Code | 211957 |
| Global Order Code | 1ARB03E00 |
CLASSIFICATION DATA
| Product hierarchy | IAK234 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 2.288 KG |
| Volume | 8.936 CDM |
| Length | 23 CM |
| Width | 21 CM |
| Height | 18,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85044090 |
| Country of Origin | CN |
LIFE CYCLE
| Predecessor | 69200 |
| Successor | 234803 FR-E740-040SC-EC |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FR-E740-040-EC Inverter,FR-E740-040-
- Brand: Mitsubishi
- Product Code: FR-E740-040-EC
- Availability: 1000
