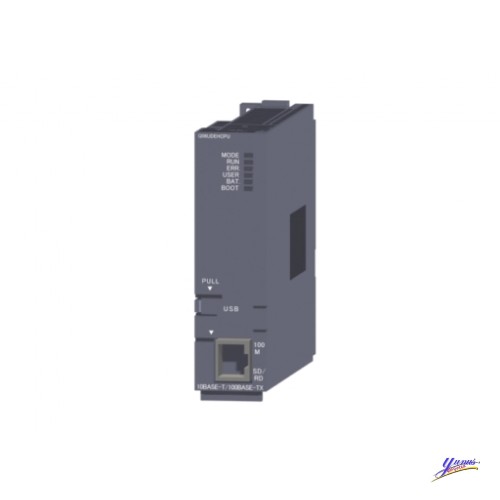

Mitsubishi Q06PHCPU PLC Q Series CPU module; Process-CPU,Q06PHCPU, Mitsubishi
Mitsubishi Q06PHCPU PLC Q Series CPU module; Process-CPU; 4096 I/O; 34 ns/log.command; 60k steps
CPU MODULE
| Type | Q SERIES |
| Module Type | PROCESS CPU |
| Program Memory | 64K |
| Program Memory Unit | STEPS |
| Local I/O Points | 4096 |
| Local + Remote I/O Points | 8192 |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 102 |
| USB | 1 |
| RS-232 | 1 |
| Buffer Battery | YES |
| Int. Current Consumption (A) | 0,64 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| Depth (mm) | 89,3 |
| Weight (kg) | 0,2 |
ORDER CODES
| European Order Code | 218139 |
| Global Order Code | 1W4A73 |
CLASSIFICATION DATA
| Product hierarchy | IAD50701 |
| Class Description | FA-MOD PLC: CPU Module |
| External Material Group | End Of Life Announced Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.23 KG |
| Volume | 0.875 CDM |
| Length | 11 CM |
| Width | 15 CM |
| Height | 5,3 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85371091 |
| Country of Origin | JP |
LIFE CYCLE
| Discontinued (EOL) | 05.06.2019 |
| Last Time Buy (LTB) | 10.07.2020 |
| End of Service (EOS) | 10.07.2027 |
| Successor | 285496 R08PCPU |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | YES |
| REACH Substance CAS Number | 110-71-4 |
| Dangerous Goods Regulations | NO |
Mitsubishi Q06PHCPU PLC Q Series CPU module; Process-CPU,Q06PHCPU
- Brand: Mitsubishi
- Product Code: Q06PHCPU
- Availability: 1000
Tags: Q06PHCPU
