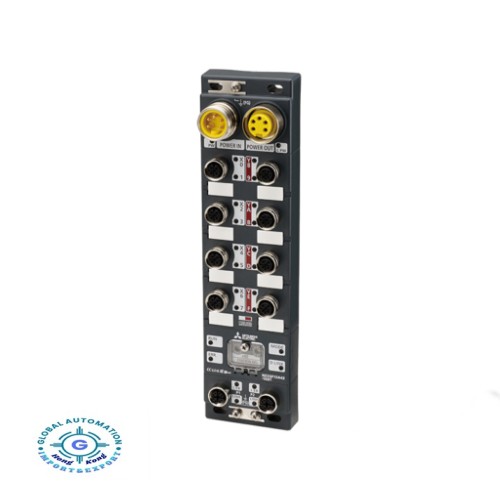

Mitsubishi NZ2GF12A42-16DT PLC CC-Link IE Field I/O module,NZ2GF12A42-1, Mitsubishi
Mitsubishi NZ2GF12A42-16DT PLC CC-Link IE Field I/O module;16ch input-output/Plus common/sink IP67
DIGITAL I/O MODULE
| Type | CC-LINK IE FIELD NETWORK |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 8 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 12/24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,24 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 60 |
| Height (mm) | 235 |
| Depth (mm) | 38,5 |
| Weight (kg) | 0,72 |
ORDER CODES
| European Order Code | 307421 |
| Global Order Code | 1WF041 |
CLASSIFICATION DATA
| Product hierarchy | IAD50305 |
| Class Description | FA-MOD PLC: Digital I/O Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | B |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.719 KG |
| Volume | 1.254 CDM |
| Length | 28,5 CM |
| Width | 8 CM |
| Height | 5,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi NZ2GF12A42-16DT PLC CC-Link IE Field I/O module,NZ2GF12A42-1
- Brand: Mitsubishi
- Product Code: NZ2GF12A42-16DT
- Availability: 1000
Tags: NZ2GF12A42-16DT
