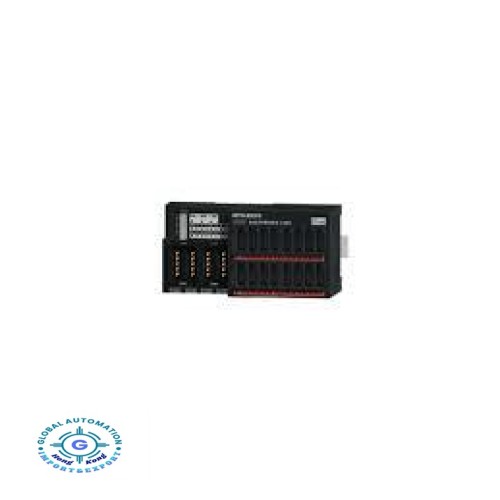

Mitsubishi AJ65VBTCE32-16DT PLC CC-LINK I/O Module,AJ65VBTCE32-, Mitsubishi
Mitsubishi AJ65VBTCE32-16DT PLC CC-LINK I/O Module; 8 inputs; 8 transistor outputs; e-CON connector; sink
DIGITAL I/O MODULE
| Type | CC-LINK REMOTE I/O |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 8 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,04 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 100 |
| Height (mm) | 50 |
| Depth (mm) | 45,5 |
| Weight (kg) | 0,11 |
ADDITIONAL INFORMATION
ORDER CODES
| European Order Code | 273746 |
| Global Order Code | 1W5432 |
CLASSIFICATION DATA
| Product hierarchy | IAD50305 |
| Class Description | FA-MOD PLC: Digital I/O Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.4 KG |
| Volume | 0 |
| Length | 0 |
| Width | 0 |
| Height | 0 |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
