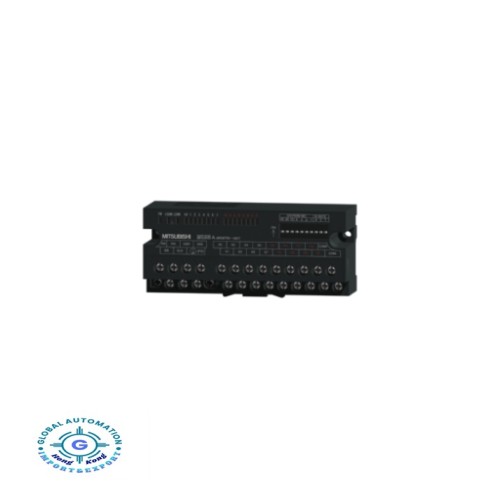

Mitsubishi AJ65SBTB1-16DT PLC CC-Link compact I/O module; 8 inputs; 8 outputs; 0,5A,AJ65SBTB1-16, Mitsubishi
Mitsubishi AJ65SBTB1-16DT PLC CC-Link compact I/O module; 8 inputs; 8 outputs; 0,5A
DIGITAL I/O MODULE
| Type | CC-LINK REMOTE I/O |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 8 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,055 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 118 |
| Height (mm) | 50 |
| Depth (mm) | 40 |
| Weight (kg) | 0,18 |
ORDER CODES
| European Order Code | 221933 |
| Global Order Code | 1W5401 |
CLASSIFICATION DATA
| Product hierarchy | IAD50301 |
| Class Description | FA-MOD PLC: Digital I/O Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | B |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.227 KG |
| Volume | 0.643 CDM |
| Length | 16,4 CM |
| Width | 7 CM |
| Height | 5,6 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | YES |
| REACH Substance CAS Number | 2451-62-9 |
| Dangerous Goods Regulations | NO |
Mitsubishi AJ65SBTB1-16DT PLC CC-Link compact I/O module; 8 inputs; 8 outputs; 0,5A,AJ65SBTB1-16
- Brand: Mitsubishi
- Product Code: AJ65SBTB1-16DT
- Availability: 1000
Tags: AJ65SBTB1-16DT
