Mitsubishi HF-SN102JK Servo Motor,HF-SN102JK, Mitsubishi

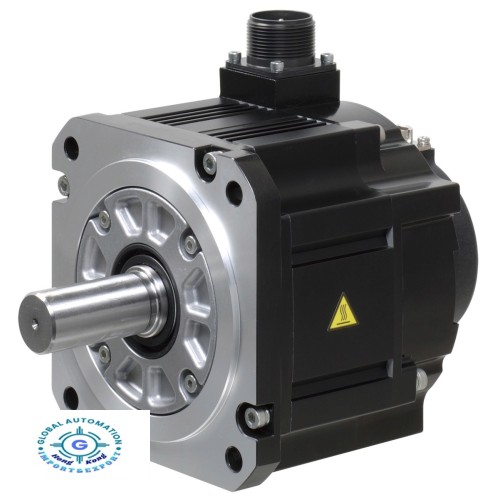

Mitsubishi HF-SN102JK Servo Motor
SERVO MOTOR
| Type | HF-SN |
| Rated Torque (Nm) | 4,77 |
| Maximum Torque (Nm) | 14,3 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 11,9 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP67 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | 17-BIT |
| Encoder Resolution (p/rev) | 131072 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 130 |
| Height (mm) | 130 |
| Depth (mm) | 141 |
| Weight (kg) | 6,5 |
ORDER CODES
| European Order Code | 253953 |
| Global Order Code | 0JA991-001005 |
CLASSIFICATION DATA
| Product hierarchy | IAK30219 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 6.35 KG |
| Volume | 11.954 CDM |
| Length | 31,5 CM |
| Width | 16,5 CM |
| Height | 23 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015220 |
| Country of Origin | JP |
LIFE CYCLE
| Predecessor | 213085 HF-SE102KW1* 1KW 2000RPM |
| Discontinued (EOL) | 05.01.2015 |
| Last Time Buy (LTB) | 31.12.2015 |
| End of Service (EOS) | 31.12.2022 |
| Successor | 282641 HG-SN102JK |
| Successor Information | SYSTEM CHANGE REQUIRED |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi HF-SN102JK Servo Motor,HF-SN102JK
- Brand: Mitsubishi
- Product Code: HF-SN102JK
- Availability: 1000
