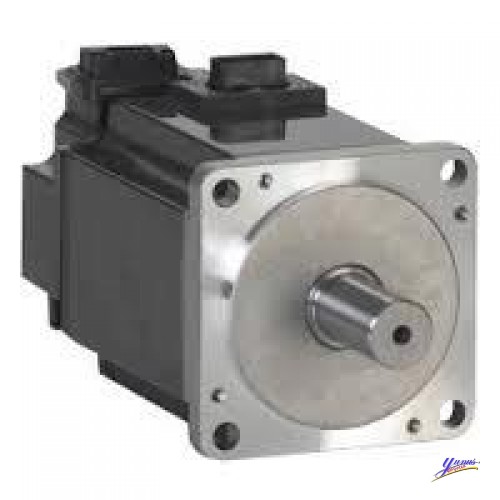

• Mitsubishi HF-SE202BKW Servo Motor,HF-SE202BKW

Mitsubishi HF-SE202BKW Servo Motor,HF-SE202BKW, Mitsubishi

Mitsubishi HF-SE202BKW Servomotor with brake, Motor characteristics: 9.55 Nm 2000 1/min 2000 W, IP65

  SERVO MOTOR
Type HF-SE
Rated Torque (Nm) 9,55
Maximum Torque (Nm) 28,6
Rated Speed (rpm) 2000
Maximum Speed (rpm) 3000
Inertia (kg*cm2) 47,9
Brake YES
Shaft Type KEYWAY
Protection Class IP65
Power Supply (V) 200
Current Type AC
Encoder Type ABSOLUTE/INCREMENTAL
Encoder Resolution (p/rev) 131072
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 176
Height (mm) 176
Depth (mm) 194,5
Weight (kg) 18
ORDER CODES
European Order Code 213094
Global Order Code 0HR954050
CLASSIFICATION DATA
Product hierarchy IAK30216
Class Description FA-Servo-Motion: Servo Motor
External Material Group Discontinued Material
AVAILABILITY
Logistic Class C
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 18.145  KG
Volume 24.492  CDM
Length 36,5 CM
Width 22 CM
Height 30,5 CM
COMMODITY / IMPORT CODE
Commodity Code 85015220
Country of Origin JP
LIFE CYCLE
Discontinued (EOL) 01.04.2013
Last Time Buy (LTB) 31.03.2013
End of Service (EOS) 31.12.2019
Successor 253969  HF-SN202BJK
ENVIRONMENTAL
RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO

Write a review

Please login or register to review

Mitsubishi HF-SE202BKW Servo Motor,HF-SE202BKW

  • Brand: Mitsubishi
  • Product Code: HF-SE202BKW
  • Availability: 1000

Tags: HF-SE202BKW
