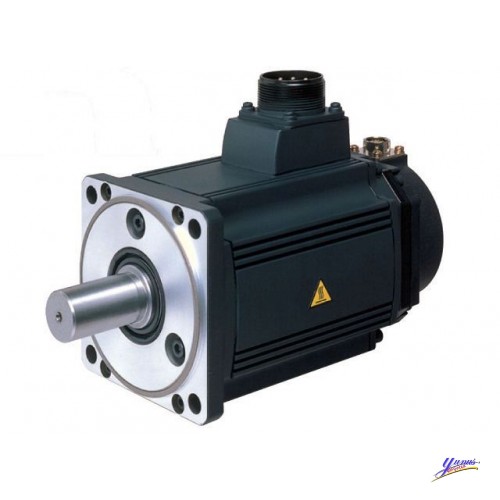

Mitsubishi HC-RP103B Servo Motor
SERVO MOTOR
| Type | HC-RP |
| Rated Capacity (kW) | 1 |
| Rated Torque (Nm) | 3,18 |
| Maximum Torque (Nm) | 7,95 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4500 |
| Inertia (kg*cm2) | 1,85 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | ABSOLUTE/INCREMENTAL |
| Encoder Resolution (p/rev) | 262144 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 100 |
| Height (mm) | 100 |
| Depth (mm) | 183,5 |
| Weight (kg) | 6 |
ORDER CODES
| European Order Code | 168644 |
| Global Order Code | 0HX051 |
CLASSIFICATION DATA
| Product hierarchy | IAK30206 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 6.376 KG |
| Volume | 18.4 CDM |
| Length | 50 CM |
| Width | 16 CM |
| Height | 23 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015220 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi HC-RP103B Servo Motor,HC-RP103B
- Brand: Mitsubishi
- Product Code: HC-RP103B
- Availability: 1000
