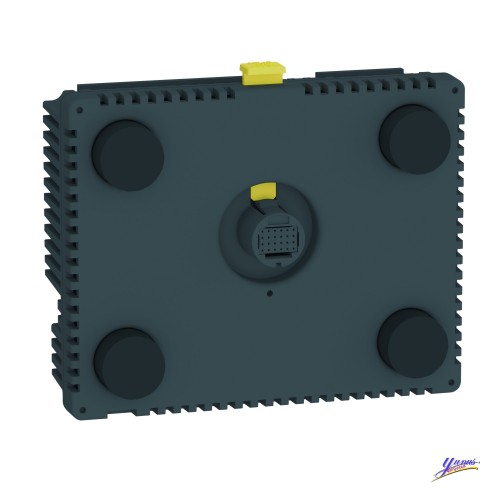

Schneider HMISAC Rear Module Controller panel - Dig 16 inputs/10 outputs

Main
range of product
Magelis SCU
product or component type
Controller
device presentation
Basic element
Complementary
supply
External source
[Us] rated supply voltage
24 V at 20.4...28.8 V DC
immunity to microbreaks
<= 10 ms
inrush current
<= 30 A
power consumption in W
15 W
local signalling
No indicator
number of pages
Limited by internal memory capacity
software designation
SoMachine
operating system
Magelis
processor name
CPU RISC
processor frequency
333 MHz
memory description
128 MB flash memory, type: NAND
128 kB internal data storage memory, type: FRAM
128 MB application run memory, type: DRAM
integrated connection type
1 RJ45 connector serial link with RS232/RS485 interface at <= 115.2 kbits/s
1 RJ45 connector Ethernet TCP/IP
1 USB 2.0 type mini B
1 USB 2.0 type A
SUB-D 9 connector CANopen master bus
realtime clock
Built-in
downloadable protocols
CANopen
Modbus TCP/IP
Modbus
fixing mode
By 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel
enclosure material
PC/PBT
shock resistance
147 m/s² (duration=11 ms) conforming to IEC 60068-2-27 on DIN rail
294 m/s² (duration=6 ms) conforming to IEC 60068-2-27 on panel mounting
vibration resistance
+/- 3.5 mm (f=5...9 Hz) conforming to IEC 60068-2-6
1 gn (f=9...150 Hz) conforming to IEC 60068-2-6
electromagnetic compatibility
Electrostatic discharge immunity test - test level: 8 kV, air discharge conforming to IEC 61000-4-2
Electrostatic discharge immunity test - test level: 6 kV, contact discharge conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m, 80 MHz...3 GHz conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test - test level: 2 kV, power lines conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV, between analogue I/O and operating voltage conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV, relay wires conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV, Ethernet line conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV, COM line conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV, CAN line conforming to IEC 61000-4-4
Surge immunity test - test level: 2 kV, power supply (common mode) conforming to IEC 61000-4-5
Surge immunity test - test level: 1 kV, power supply (differential mode) conforming to IEC 61000-4-5
Surge immunity test - test level: 1 kV common mode, digital I/O conforming to IEC 61000-4-5
Surge immunity test - test level: 0.5 kV differential mode, digital I/O conforming to IEC 61000-4-5
Conducted RF disturbances - test level: 10 V, 0.15...80 MHz conforming to IEC 61000-4-6
Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011
Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
discrete input number
2 for fast input (normal mode) conforming to IEC 61131-2 Type 1
14 for digital input conforming to IEC 61131-2 Type 1
discrete input voltage
24 V DC discrete input logic:sink or source (positive/negative)
number of common point
1 for fast input (HSC mode)
2 for digital input
discrete input current
7.83 mA for fast input
5 mA for digital
input impedance
4.7 kOhm
2.81 kOhm
sensor power supply
15...28.8 V DC, voltage (state 1): >= 15 V, current (state 1): >= 5 mA, voltage (state 0): <= 5 V, current (state 0): <= 1.5 mA
15...28.8 V DC, voltage (state 1): >= 15 V, current (state 1): >= 2.5 mA, voltage (state 0): <= 5 V, current (state 0): <= 1 mA
configurable filtering time
0 ms no filter (none)
0.004...0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2))
3...12 ms integrator (none/run/stop)
input frequency
100 kHz for fast input (encoder mode) - control type A/B
100 kHz for fast input - control type single phase
100 kHz for fast input - control type pulse/direction
cable distance between devices
Shielded cable: 10 m for fast input
Shielded cable: 100 m for digital input
Unshielded cable: 50 m for digital input
connection pitch
3.5 mm
overvoltage protection
With
isolation between channels and internal logic
500 V DC
isolation between channels
None
discrete output number
2 fast output (normal mode), output logic: source
8 digital output, output logic: source
discrete output voltage
24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete output(s)
24 V DC (voltage limit: 5...30 V) with relay discrete output(s)
220 V AC (voltage limit: 100...250 V) with relay discrete output(s)
input/output number
2 for fast input, terminal(s): FI0...FI1
14 for digital input, terminal(s): DI0...DI13
2 for fast output, terminal(s): FQ0...FQ1
8 for digital output, terminal(s): DQ0...DQ7
discrete output current
300 mA, response time 2 ms for fast output (normal mode)
50 mA, response time 2 ms for fast output (PWM or PTO mode)
2 A (current per output common:4 A), response time 5 ms with opening contact for digital output
2 A (current per output common:4 A), response time 2 ms with closing contact for digital output
insulation resistance
> 10 MOhm between the I/O and internal logic
> 10 MOhm between power supply and earth
output frequency
<= 100 kHz for fast output (PTO mode)
<= 1 kHz for fast output (PWM mode)
absolute accuracy error
+/- 0.1 % of full scale of cyclic ratio 1...99% for fast output (PWM or PTO mode)
1 % of full scale of cyclic ratio 1...99% for fast output (PWM or PTO mode)
+/- 5 % of full scale of cyclic ratio 10...90% for fast output (PWM or PTO mode)
+/- 10 % of full scale of cyclic ratio 20...80% for fast output (PWM or PTO mode)
+/- 15 % of full scale of cyclic ratio 30...70% for fast output (PWM or PTO mode)
height
50.65 mm
width
128 mm
depth
102 mm
product weight
0.359 kg

Environment
standards
CSA C22.2 No 213 Class I Division 2
UL 508
WEEE directive 2002/96/EC
EN 61131-2
ANSI/ISA 12-12-01
RoHS compliant
IEC 61000-6-2
RoHS China SJ/T 11363-2006
FCC Class A
product certifications
CUL 1604 Class 1 Division 2
GOST
KCC
CULus 508
C-Tick
CULus CSA 22-2 No 142
marking
CE
ambient air temperature for operation
0...50 °C
ambient air temperature for storage
-20...60 °C
relative humidity
5...85 % without condensation
operating altitude
<= 2000 m
storage altitude
0...10000 m
maximum pressure
800...1114 hPa
IP degree of protection
IP65 for front panel conforming to IEC 60529
IP20 for rear panel conforming to IEC 60529
NEMA degree of protection
NEMA 4X for front panel
pollution degree
2 conforming to IEC 60664
environmental characteristic
Corrosive gas free
