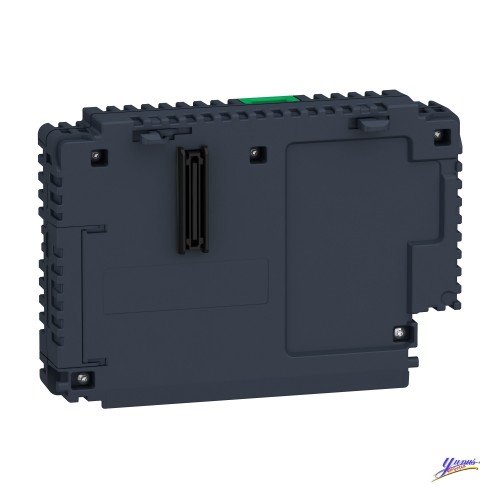

Schneider HMIG3U Premium BOX for Universal Panel

Main
range of product
Magelis GTU
product or component type
Base unit
device short name
Premium Box
processor name
CPU RISC 600 MHz
operating system
Magelis
software package
Vijeo Designer run time
Complementary
range compatibility
Magelis GTU
data storage equipment
1 GB SD card
port Ethernet
10BASE-T/100BASE-TX/1000BASE-T
memory description
Backup memory 512 kB NVRAM
Internal 256 MB RAM 2 x 13 mm board
type of cooling
Natural convection
integrated connection type
USB 2.0 port mini B USB
Auxiliary port terminal block
Expansion unit fieldbus card
Ethernet TCP/IP with 2 RJ45
COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s
COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s
COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s
COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s
USB 2.0 port with 2 USB type A
communication port protocol
Modbus
Modbus TCP/IP
Uni-Telway
[Us] rated supply voltage
12...24 V DC power supply
depth
45 mm
height
131 mm
width
188 mm
product weight
0.9 kg
number of slots available for expansion
2 SD card

Environment
standards
CSA C22.2 No 142
ANSI/ISA 12-12-01
CSA C22.2 No 213 class I division 2
IEC 61132-2
UL 508
product certifications
CCS
EAC
KC
ATEX
RCM
CUL
IEC-Ex
GL
ABS
BV
DNV
LR
RINA
CULus
CE
pollution degree
2 conforming to EN 61131-2 Ed.3
electromagnetic compatibility
Electrostatic discharge immunity test EN/IEC 61000-4-2 level 3
ambient air temperature for storage
-20...60 °C
relative humidity
10...90 % non-condensing
ambient air temperature for operation
0...60 °C
operating altitude
2000 m
vibration resistance
3.5 mm constant amplitude 5...9 Hz conforming to EN/IEC 61131-2
9.8 m/s² 9...150 Hz conforming to EN/IEC 61131-2
