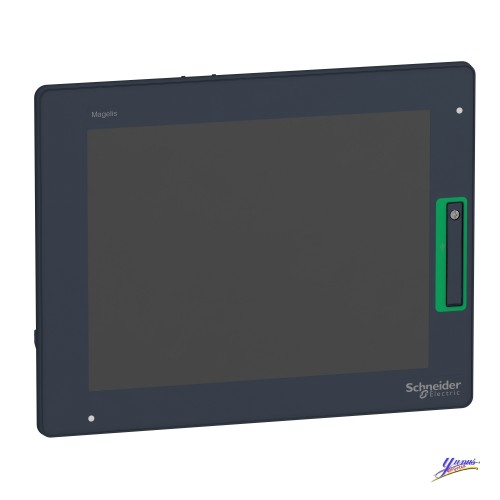

Schneider HMIDID64DTD1 Industrial touchscreen display - 12'' - Multi-touch screen - 24 Vdc,HMIDID64DTD1, Schneider
Schneider HMIDID64DTD1 Industrial touchscreen display - 12'' - Multi-touch screen - 24 Vdc
| range of product |
Magelis iDisplay
|
|
|---|---|---|
| product or component type |
Flat screen
|
|
| terminal type |
Touchscreen display
|
|
| device mounting |
Flush
|
|
| integrated connection type |
DVI-D video port
USB 2.0 type A USB 2.0 type mini B, compatible with drivers up to Windows 8.1 |
| provided equipment |
1 cable with DVI-D connector of 5 m
1 cable with USB type A connector of 5 m 1 USB cable with mini B USB 2.0 connector |
|
|---|---|---|
| function available |
Brightness sensor
|
|
| [Us] rated supply voltage |
12...24 V DC power supply
|
|
| power consumption in W |
17 W
|
|
| display size |
12.1 inch
|
|
| display type |
Colour TFT LCD
|
|
| display resolution |
1024 x 768 pixels XGA
|
|
| display colour |
16 million colours
|
|
| luminance |
400 cd/m²
100 cd/m² |
|
| backlight lifespan |
50000 hours
|
|
| touch panel |
Multi touch analogue resistive, 1000000 cycles
|
|
| type of installation |
Indoor installation
|
|
| cut-out dimensions |
301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
|
|
| width |
315 mm
|
|
| height |
241 mm
|
|
| depth |
67 mm
|
|
| product weight |
3.9 kg
|
| IP degree of protection |
IP67f (front panel)
IP66f (front panel) conforming to UL 50E |
|
|---|---|---|
| NEMA degree of protection |
NEMA 4X/13 (front panel)
|
|
| standards |
CSA C22.2 No 142
ANSI/ISA 12-12-01 CSA C22.2 No 213 : class I division 2 UL 508 |
|
| product certifications |
CE
RCM EAC |
|
| ambient air temperature for operation |
0...60 °C conforming to EN 61131-2, UL
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| pollution degree |
2
|
|
| vibration resistance |
3.5 mm constant amplitude (f = 5...9 Hz) conforming to IEC
61131-2
9.8 m/s² (f = 9...150 Hz) conforming to IEC 61131-2 |
|
| shock resistance |
147 m/s² conforming to EN/IEC 61131-2
|
Schneider HMIDID64DTD1 Industrial touchscreen display - 12'' - Multi-touch screen - 24 Vdc,HMIDID64DTD1
- Brand: Schneider
- Product Code: HMIDID64DTD1
- Availability: 1000
Tags: HMIDID64DTD1
