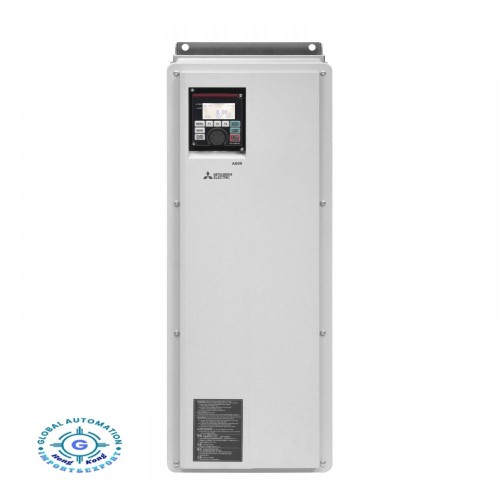

• Mitsubishi FR-F846-03250-E2-60L2 Inverter,FR-F846-0325

Mitsubishi FR-F846-03250-E2-60L2 Inverter,FR-F846-0325, Mitsubishi

Mitsubishi FR-F846-03250-E2-60L2 Inverter AC; Pn: 132kW; 3x380-500V;In max: 260A; IP55

  INVERTER
Type FR-F800 PUMP AND FAN
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 500
Max. Permissible Voltage (V) 550
Current Type AC
Phases 3
Rated Output Current SLD (A) 325
Rated Output Current LD (A) 260
Rated Motor Capacity SLD (kW) 160
Rated Motor Capacity LD (kW) 132
Control Method ADVANCED MAGN. FLUX VEC. CTRL
Motor Type INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter YES
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display FR-DU08
Display Type 5 DIGITS LED
PLC Function YES
Program Memory 6K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
Type of Terminal Block PLUG
Expandable YES
USB 2
Built-In Network CC-LINK IE FIELD BASIC, SLMP,
Protection Class IP55
Power Loss (W) 3600
Standby Power Consumption (W) 75
Leakage Current (mA) 2
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 420
Height (mm) 1510
Depth (mm) 456,6
Weight (kg) 189
ORDER CODES
European Order Code 318074
Global Order Code 1AB991-0000D3
CLASSIFICATION DATA
Product hierarchy IAK245
Class Description FA-Inverter: Inverter
External Material Group Standard Material
AVAILABILITY
Logistic Class A
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 260  KG
Volume 619.08  CDM
Length 165 CM
Width 56 CM
Height 67 CM
COMMODITY / IMPORT CODE
Commodity Code 85371091
Country of Origin JP
CAMPAIGNS
Selling Status Standard
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO
