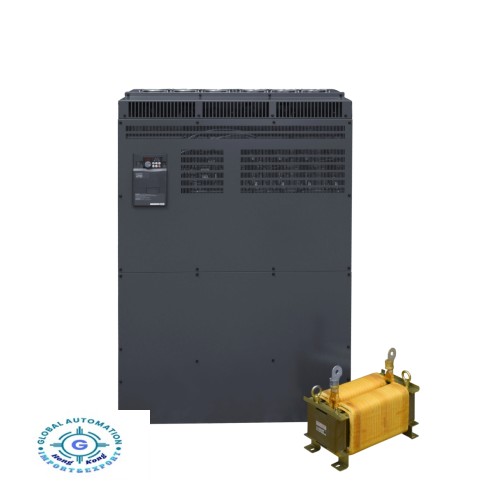

• Mitsubishi FR-A770-355K-79 Inverter,FR-A770-355K

Mitsubishi FR-A770-355K-79 Inverter,FR-A770-355K, Mitsubishi

Mitsubishi FR-A770-355K-79 Inverter; Rated Power: 355kW; 3x600-690V; Rated Current: 401A; IP00

  INVERTER
Type FR-A700 ADVANCED INVERTER
Minimum Rated Voltage (V) 600
Min. Permissible Voltage (V) 540
Maximum Rated Voltage (V) 690
Max. Permissible Voltage (V) 759
Current Type AC
Phases 3
Rated Output Current ND (A) 401
Rated Motor Capacity ND (kW) 355
Control Method VECTOR CONTROL
Motor Type INDUCTION MOTOR
Integrated EMC Filter YES
Safe Torque Off (STO) NO
Regenerative (4Q) NO
Integrated DC Choke NO
Display FR-DU07
Display Type 4 DIGITS LED
PLC Function YES
Program Memory 1K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
Type of Terminal Block SCREW
Expandable YES
RS-485 2
USB 1
Built-In Network MODBUS-RTU
Protection Class IP00
Power Loss (W) 8000
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 995
Height (mm) 1580
Depth (mm) 440
Weight (kg) 380
ORDER CODES
European Order Code 268859
Global Order Code 1AL991-001002
CLASSIFICATION DATA
Product hierarchy IAK239
Class Description FA-Inverter: Inverter
External Material Group Standard Material
AVAILABILITY
Logistic Class C
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 560  KG
Volume 1,760.521  CDM
Length 217 CM
Width 122 CM
Height 66,5 CM
COMMODITY / IMPORT CODE
Commodity Code 85371091
Country of Origin JP
CAMPAIGNS
Selling Status Standard
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO
