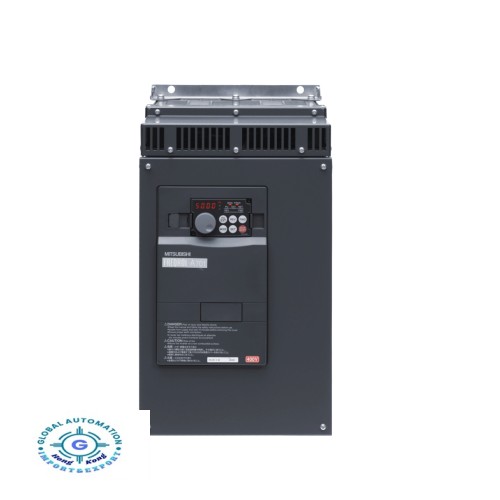

• Mitsubishi FR-A741-5.5K Inverter,FR-A741-5.5K

Mitsubishi FR-A741-5.5K Inverter,FR-A741-5.5K, Mitsubishi

Mitsubishi FR-A741-5.5K Inverter; Rated Power: 5,5kW; 3x380-480V; Rated Current: 12A; IP00

  INVERTER
Type FR-A700 ADVANCED INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 480
Max. Permissible Voltage (V) 528
Current Type AC
Phases 3
Rated Output Current ND (A) 12
Rated Motor Capacity ND (kW) 5,5
Control Method VECTOR CONTROL
Motor Type INDUCTION MOTOR
Brake Chopper ED (%) 30
Integrated EMC Filter YES
Safe Torque Off (STO) NO
Regenerative (4Q) YES
Integrated DC Choke NO
Display FR-DU07
Display Type 4 DIGITS LED
PLC Function YES
Program Memory 1K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
Type of Terminal Block SCREW
Expandable YES
RS-485 2
USB 1
Built-In Network MODBUS-RTU
Protection Class IP00
Power Loss (W) 330
Leakage Current (mA) 1
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 250
Height (mm) 470
Depth (mm) 270
Weight (kg) 25
ORDER CODES
European Order Code 216905
Global Order Code 1AWB00M00
CLASSIFICATION DATA
Product hierarchy IAK22602
Class Description FA-Inverter: Inverter
External Material Group Standard Material
AVAILABILITY
Logistic Class A
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 26.5  KG
Volume 66.152  CDM
Length 54,5 CM
Width 35,7 CM
Height 34 CM
COMMODITY / IMPORT CODE
Commodity Code 85044090
Country of Origin JP
CAMPAIGNS
Selling Status Standard
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO
